Connect your craft to the machine

SmoothTool is an easy-to-use cobot welding package that helps your welding robot deliver the perfect result – by learning from you.

We get a better working environment and less stress as the welder does not have to sit for long hours near the welding fumes and the heat, and at the same time profitability increases.

Sven-Ingvar Björck

Owner, Vattholma Mekano AB

Experts in robotic welding

Robot Union Logo

Selected as one of the top 10 robotics startups by RobotUnion in 2019

Weld galaxy logo

Winner of the second WeldGalaxy Open Call in 2021

UR+ Certified

UR+ certified: Tested and approved by Universal Robots

Innovation Fund Denmark

Supported by Innovation Fund Denmark

3 point offset function

New release: SmoothTool 1.5

SmoothTool 1.5 is now live! A major update that brings a bunch of exciting new features and improvements to the URcap. Let's have a look at some of the prominent new additions to the SmoothTool software in this new release. New features SmoothTool 1.5 comes with a...

Smoothtool

All you need to get the job done

SmoothTool is a robotic welding solution that helps you deliver your best work by putting you in charge of the automated welding process.

Offset welding

  • Copy and offset items in X, Y, Z direction or hand-guide the robot to your preferred offset position​ to ensure the best weld every time​

Stitch welding

  • Control your stitch weld with parameters, e.g., retraction, weld length, air speed, number of welds​

3D Viewer

  • Check if your welding path needs correcting before pressing start​
  • Zoom into different segments of the welding path for a closer look

Linear and circular weaving

  • Works on CB and e-series​
  • Set and adjust the amplitude, frequency and dwell time for the best result
  • Can also be combined with stitch welding

UR+ certified

  • SmoothTool is a ‘plug-and-play’ robotic welding kit that is tested and approved by Universal Robots
  • Compatible with UR3e, UR5e, UR10e, UR16e and CB-series collaborative robots (or cobots)

Power source independent

  • Use your preferred power source
  • Manage parameters using the UR teach pendant​ or directly on the power source

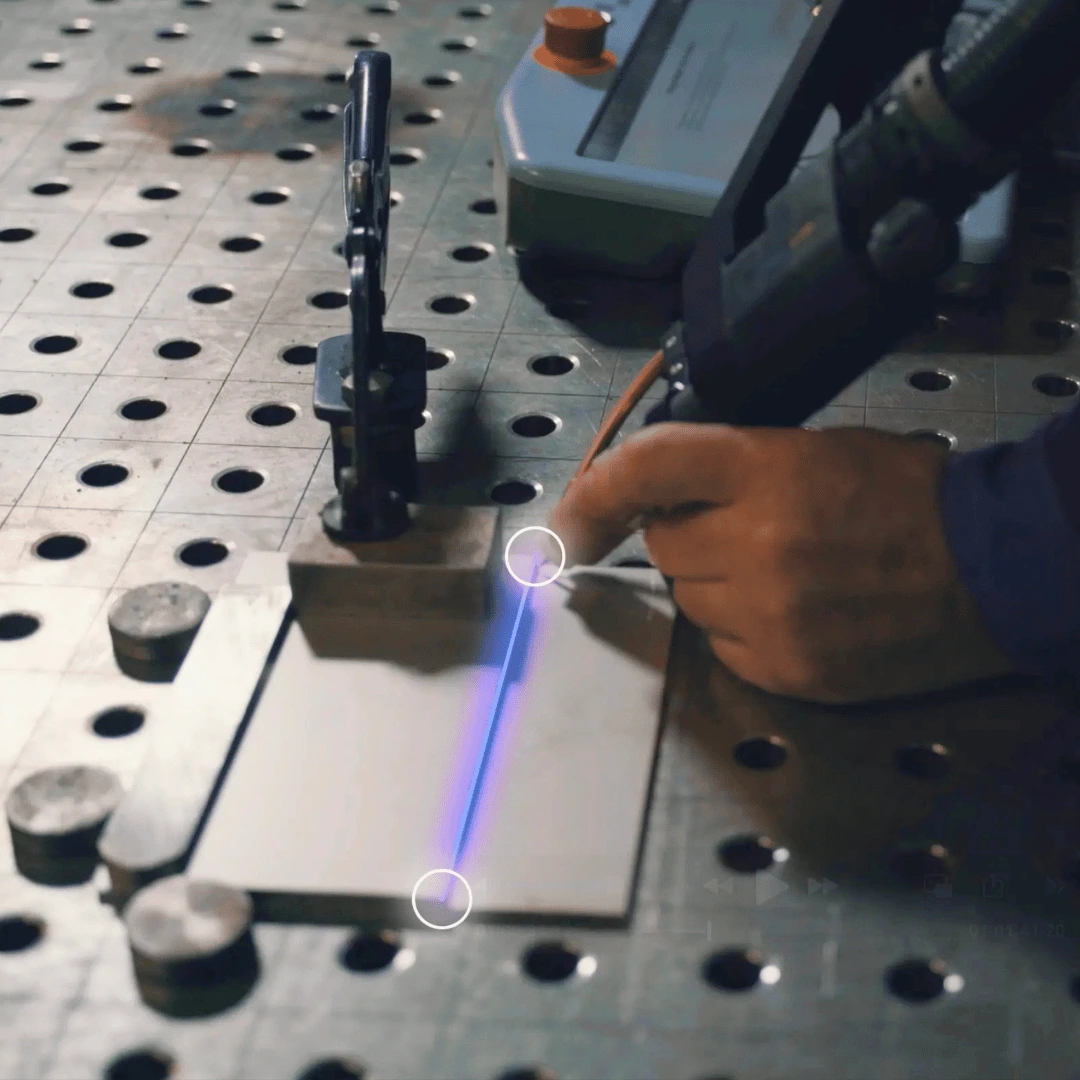

Programming Flange

  • Use the Programming Flange to show your robot how you want the job done
  • Doing it freehand makes this process a lot easier and faster
linears and circulars tpad

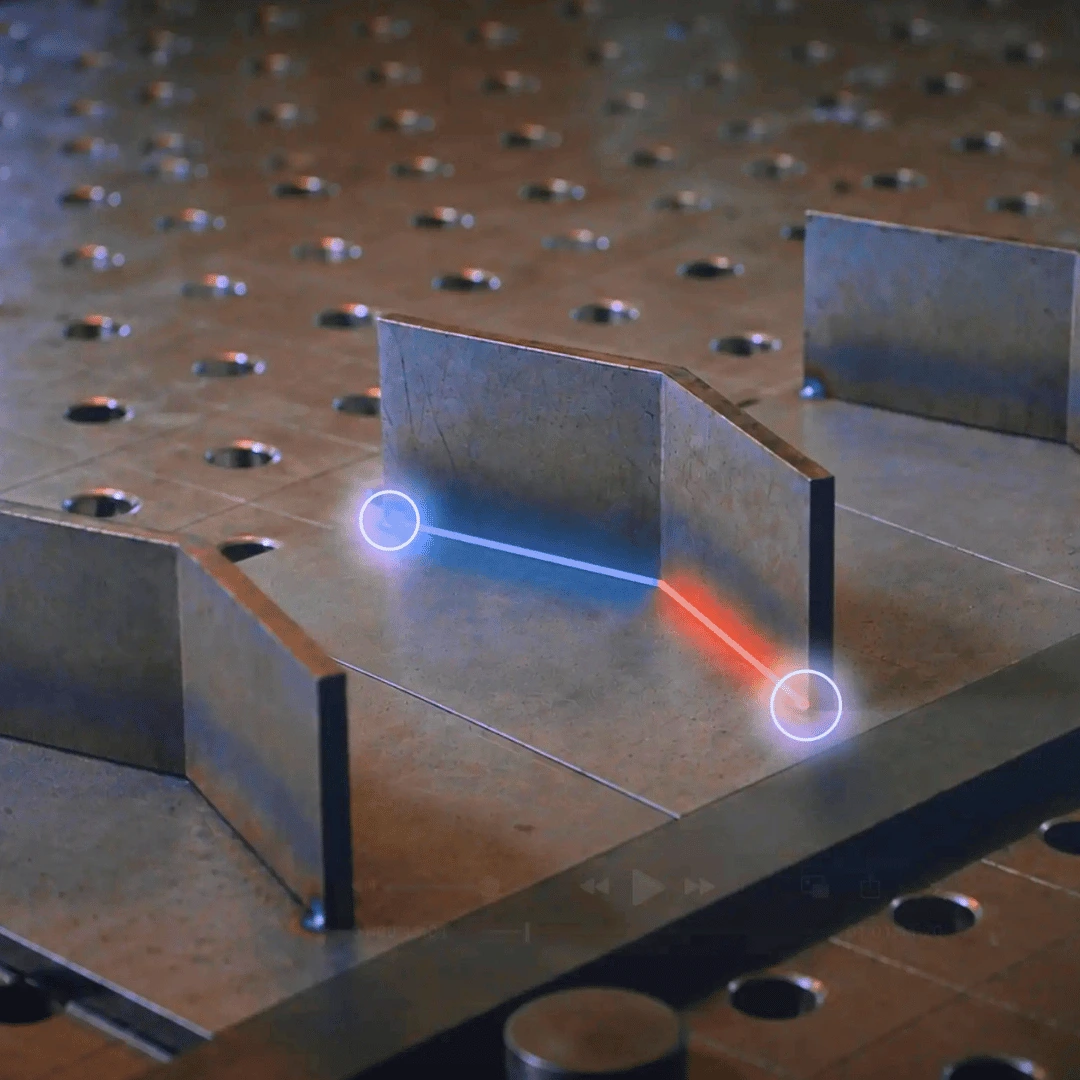

Easily build complex welding paths

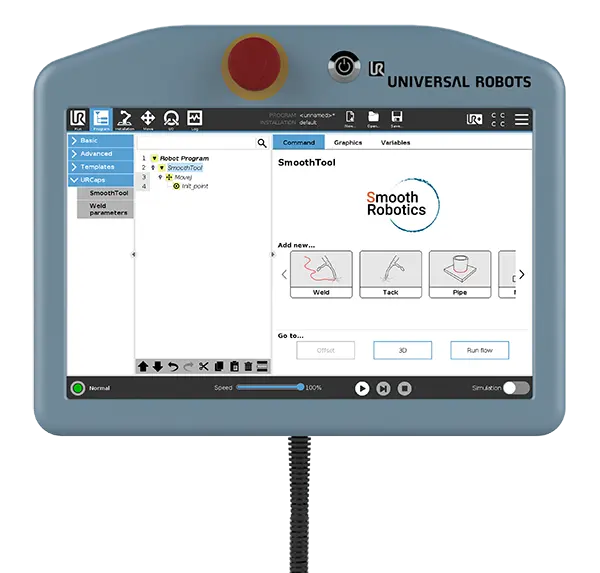

Weld any shape you want by combining linear and circular paths. Easily set up simple or complex welding paths in the intuitive SmoothTool programming interface.

easy weaving tpad

Add weaving pattern with just a few clicks

Choose the weaving pattern you like and apply it to all or some of your welds in your program with just a few clicks.

customizable patterns 2 tpad

Customizable weaving patterns

Adjust the parameters to achieve the perfect weaving pattern for your weld.

kemppi weld parameters tpad

Adjust welding parameters at any point in your program

Use one of the integrated power sources and gain the ability to insert adjustments to welding parameters in your program.

INTEGRATION

Use your preferred power source

We are compatible with every welding power source brand. No matter what you’re running, you can use SmoothTool with your existing power source by choosing from our integration options for manual and robotic welding power sources.

 Welding power sources
Power source
Preconfigured welding power sources (for robotic welding power sources)

We’ve preconfigured SmoothTool to be compatible with several robotic welding power sources that are ‘plug and play’. And we’ll keep adding more.

Digital I/O
Digital I/O

You can set up SmoothTool by simply using Digital I/O with your power sources.

Callback function
Callback function

With UR Script you can decide how to switch the power source on and off.

Need more info?

3D VIEWER

View your paths in 3D

SmoothTool’s 3D Viewer creates a virtual welding path so you can adjust the parameters to get the perfect weld first time and minimize the need for dry runs.

EASE OF USE

Make a basic welding program in just 4 steps

Step one

Approach: Set the point above the item you’re about to weld

step two

Weld Start: Set the starting point of your welding path (arc on)

step three

Weld End: Set the ending point of your welding path (arc off)

step four

Exit: Set the point above the item where the welding will end

welding robot 4 steps

PRODUCT

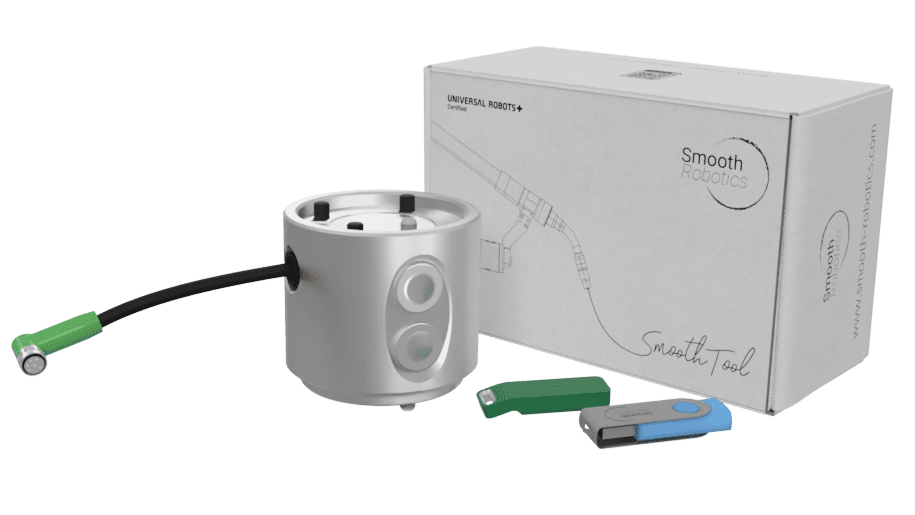

What’s in the box?

Installation guide
License USB key
Software USB key (URCap and user manual)
Programming Flange

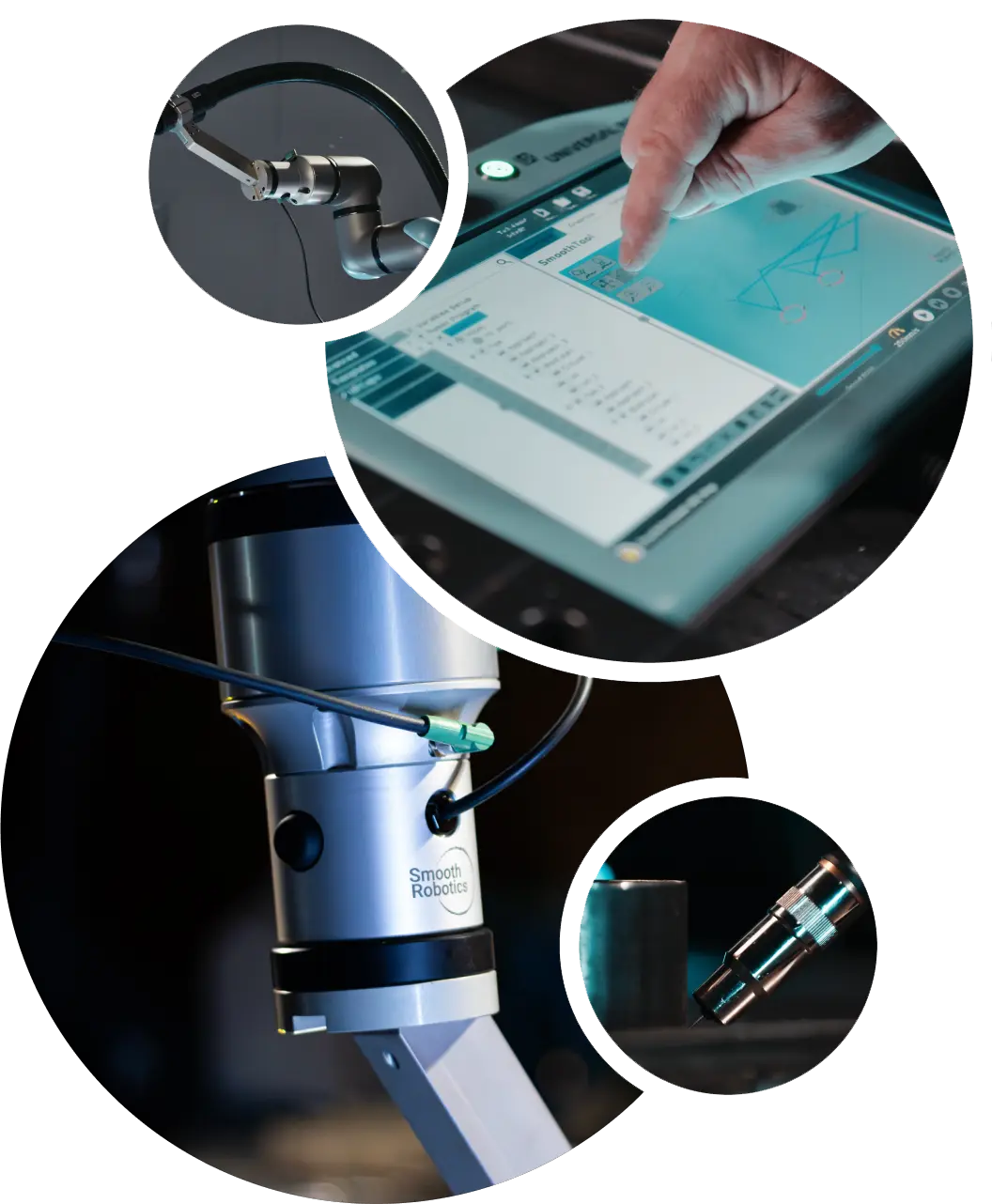

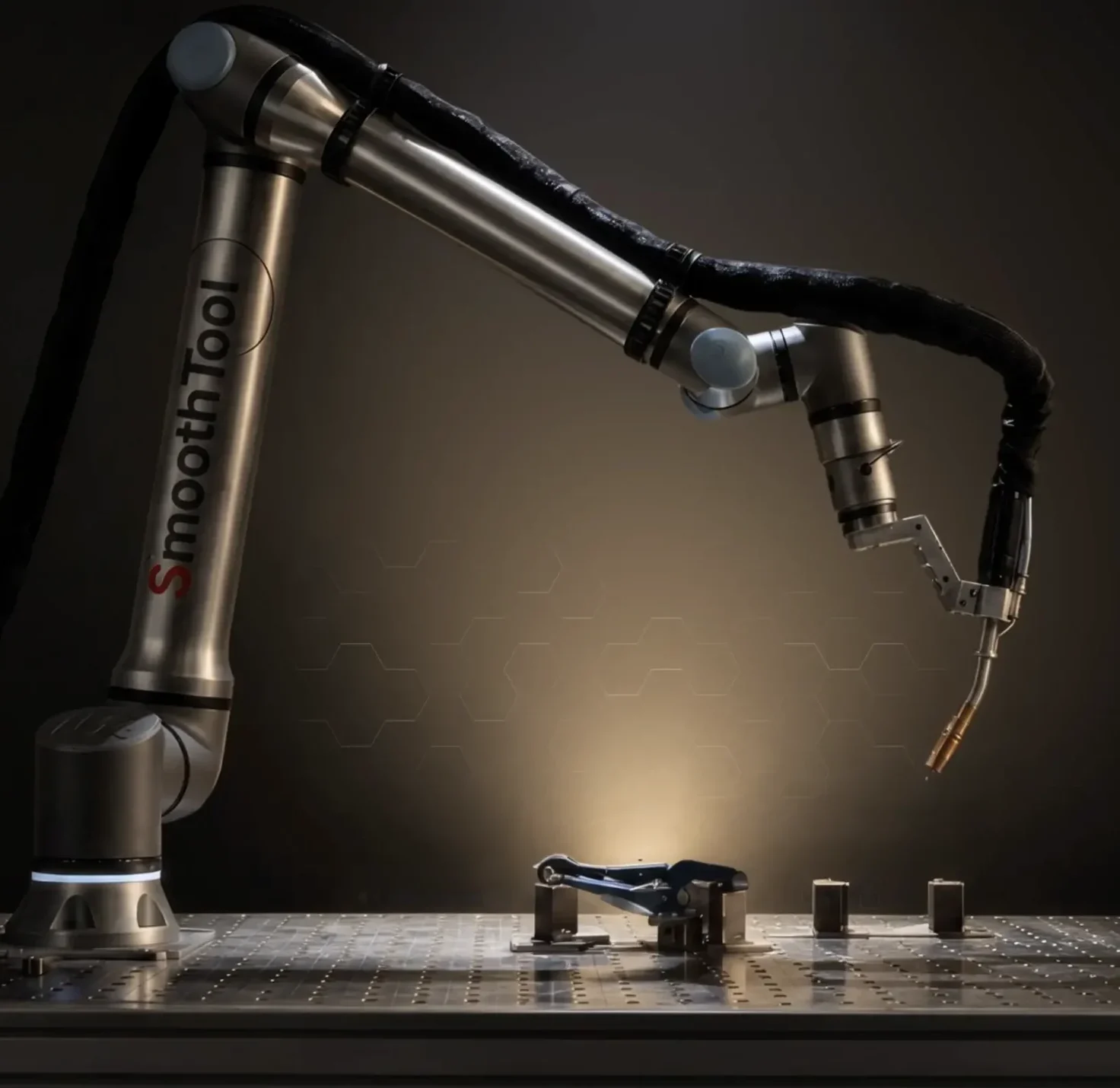

SmoothTool product image

Robotic welding is changing

Automated robotic welding used to be exclusive to large manufacturers that required high volumes of identical welds in their production workflow. Today, due to the development of collaborative robotics, robotic welding offers significant advantages to production companies large and small.

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

More accessible to SMEs

Small- and medium-sized production companies now have the opportunity to incorporate robotic welding into their workflows without risk.

  • Advancements in robotic welding allow production workers who have no previous robotics programming experience to learn how to operate a cobot within minutes.
  • With robotic welding having been around for some time, the start-up costs in adding a robot to the operation have decreased.
  • Cobots work alongside humans and therefore don’t need to be kept in a cage that takes up a lot of factory floor space. With cobots (such as those from Universal Robots) weighing as little as 11 kg, many production companies choose to mount their robot arm on a magnetized surface or a wheeled trolley so they can deploy it anywhere in the factory.

More profitable

By incorporating the robotic welding process into their workflows, SMEs benefit from reduced manufacturing costs and a shorter payback period on the robot through:

  • Increased efficiency and quality through consistency and repeatability of welds, resulting in improved ROI on smaller batches; and
  • Increased focus on design – giving the welder time to focus on more complex and profitable projects.

More attractive workplace

SMEs that use robotic welding in their operation can make up the shortfall in skilled welders through the efficiencies gained by adding a cobot to the team.

In addition, SMEs can attract employees with a broader skill set who are ready to add robotic welding to their portfolio where the job will demand more of their expertise in decision making, attention to detail and customer service.

Studies show that robotic welding reduces instances of repetitive strain injury (RSI) in welders. As well as being good for employee wellbeing, it’s good for SMEs too as it reduces the risk of exposure to staff shortages.

Smooth Robotics - your trusted partner

At Smooth Robotics, we help you deliver your best work by putting you in control of the automated welding process in a way that enhances your business and benefits your employees. Let us help your business reap the benefits of robotic welding.
